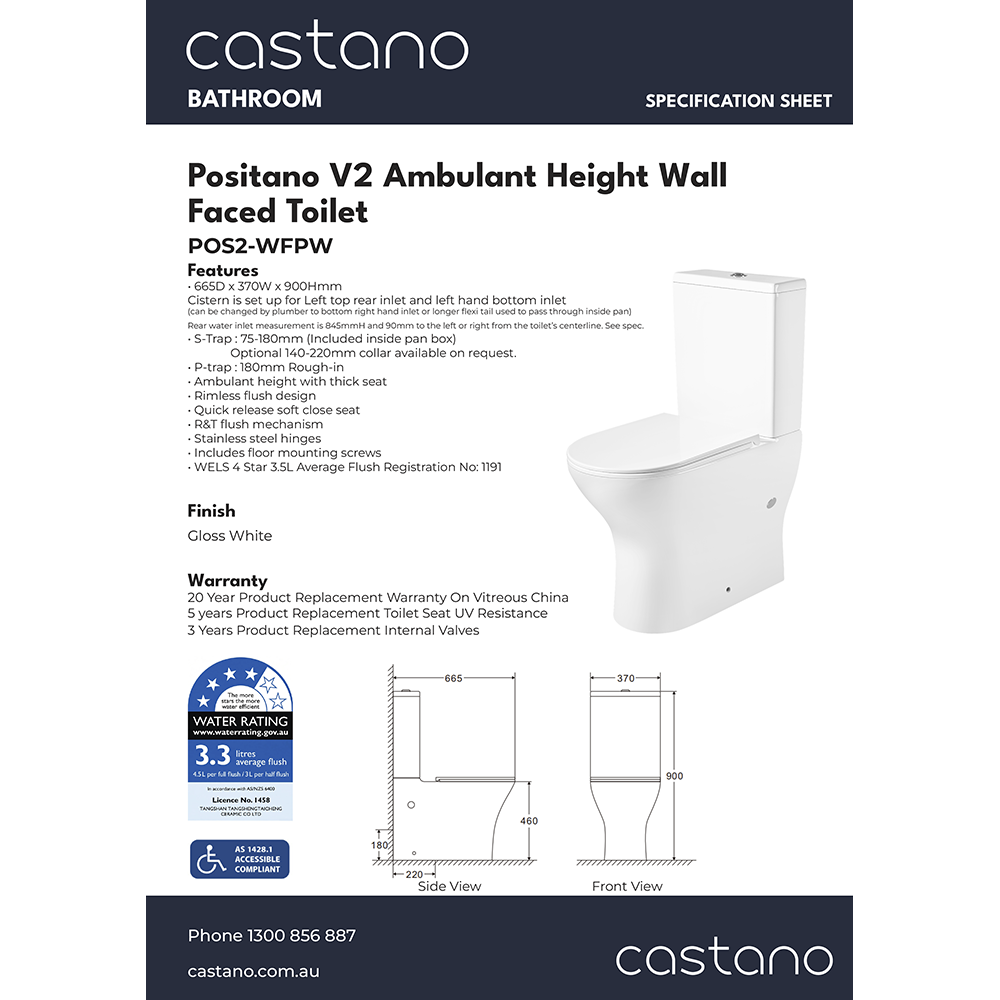

Features and Benefits

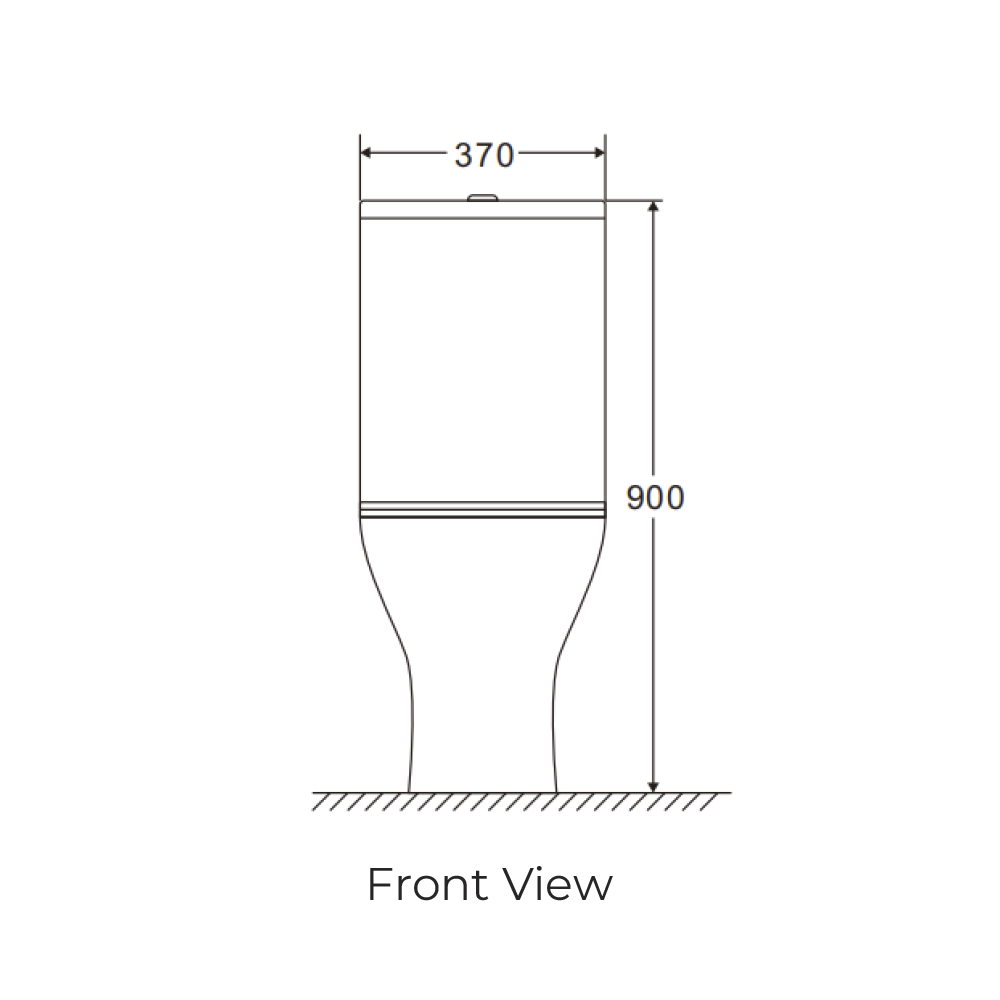

• 665D x 370W x 900Hmm
Cistern is set up for Left top rear inlet and left hand bottom inlet
(can be changed by plumber to bottom right hand inlet or longer flexi tail used to pass through inside pan)

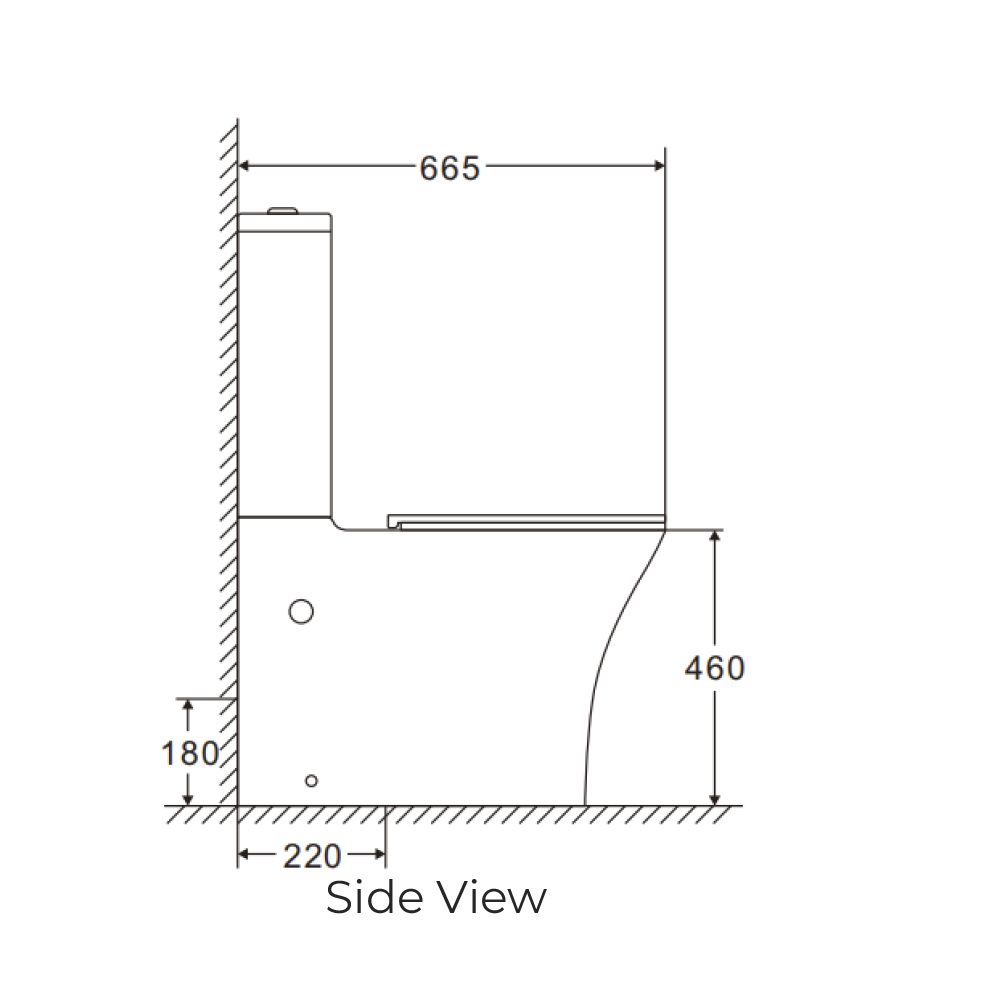

Rear water inlet measurement is 845mmH and 90mm to the left or right from the toilet’s centerline. See spec.
• S-Trap : 75-180mm (Included inside pan box)
Optional 140-220mm collar available on request.
• P-trap : 180mm Rough-in
• Ambulant height with thick seat
• Rimless flush design
• Quick release soft close seat
• R&T flush mechanism
• Stainless steel hinges
• Includes floor mounting screws
• WELS 4 Star 3.5L Average Flush Registration No: 1191
